LifeGuard –

Features

LifeGuard is a connected system that secures environments where vehicles and pedestrians meet. Thanks to smart devices, you will be able to detect and prevent vehicle-pedestrian collisions.

Main features

In urban areas, in an industrial or construction environment, LifeGuard is a simple and effective solution to optimize pedestrians and operaotrs’ safety.

y

The driver is alerted by a double signal (sound and red/orange light)

The pedestrian is alerted by a double signal (voice message and red light)

The driver visual assistance is preserved.

.

Customizable detection area (up to 3 detection zones)

\

The cameras are mounted in the back, on the sides and/or in the front of the vehicle.

The detected pedestrians are easily identified by the driver on the LCD screen, as a yellow frame surrounds the pedestrian(s)

=

Continuous video recordings of all detections The GPS position can also be recorded.

g

Volume control of the internal and external alarm from the mobile application.

Life Guard Road & Construction

Technical description

This detection and prevention system, simultaneously alerts ( via both sound and visual alarm) the driver and the pedestrian as soon as the pedestrian enters an area defined as dangerous.

Runs on 12 volts or 24 volts

Works at night (940 IR, 8-10 meters)

Works under extreme weather conditions, IP68 water and dust resistant (cold, heat, rain, snow, strong wind)

Shocks and vibrations resistant

Wide angle camera (over 150°)

When the device is active, the driver is notified by a visual signal (green light)

The driver is alerted by a visual signal (red or orange light depending on the distance) that one or more pedestrians are in the detection area.

The detection system can be activated when shifting to reverse, when using blinkers, when driving, etc... (this setting can be inclusive)

Head unit: 1 slot for a 256 GB SD card. 1 USB port. 1 USB port

Construction site / Road system

LifeGuard Construction & Road kit

The LifeGuard basic kit includes a head unit, an AHD camera, an LCD screen, an external alarm and an internal alarm. You also get the mobile application that allows you to configure the detection areas of the system. In any environment, no additional wearable device is required for pedestrians.

As an option, you can add: 4G connection / data / kpi, GPS and / or the possibility to extend a 360 ° detection.

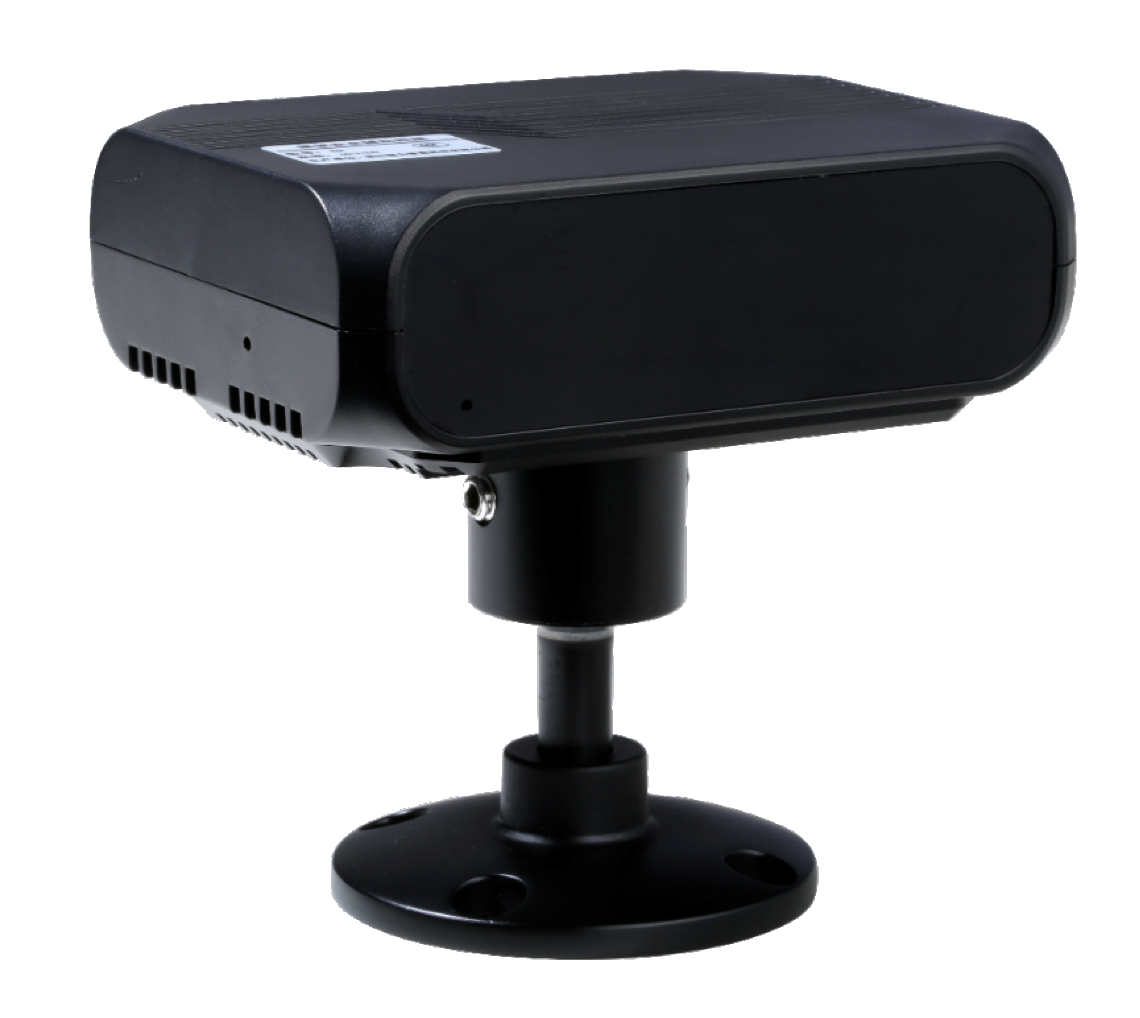

Head Unit

AHD camera (20M AHD Video Power Cable)

LCD Screen

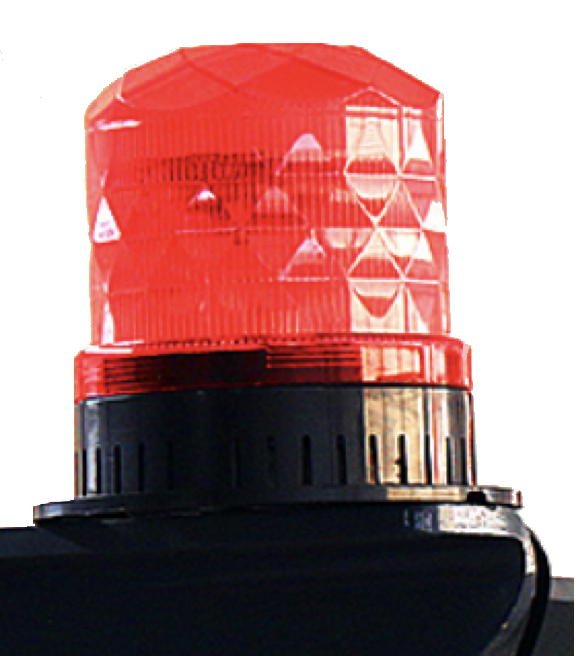

external alarm (20M cable)

Internal alarm

WIFI Cable

Mobile App

Book a demo

Watch LifeGuard in action

Fast & easy setup

No setup required for human recognition

No need for users to wear any kind of sensor or chip

Would you like to see a demo?

Live with one of our product specialists, at your convenience.

    Life Guard Warehouse

    Technical description

    This detection and prevention system, simultaneously alerts ( via both sound and visual alarm) the driver and the pedestrian as soon as the pedestrian enters an area defined as dangerous.

    Runs on 12 volts or 24 volts

    Works at night (940 IR, 8-10 meters)

    Works under extreme weather conditions, IP68 water and dust resistant (cold, heat, rain, snow, strong wind)

    Shocks and vibrations resistant

    Wide angle camera (over 150°)

    The detection system can be activated when shifting to reverse, when using blinkers, when driving, etc... (this setting can be inclusive)

    Head unit: 1 slot for a 128 GB SD card.

    Forklift system

    LifeGuard Warehouse Kit

    The LifeGuard basic kit includes a head unit, an AHD camera, an LCD screen and an external alarm. You also get the mobile application allowing you to configure the detection areas of the system. In any environment, no additional wearable device is required for pedestrians.

    As an option, you can add: a second camera / 4G connection / data / kpi, GPS, or a facial recognition module.

    Head Unit

    AHD camera (5M AHD Video Power Cable)

    LCD Screen

    external alarm - sound and light (5M cable)

    WIFI Cable

    Mobile App
